Case Study · 02

DocLocker

A privacy-first cloud document vault — store, manage, and share files securely with multi-factor authentication, Cloudinary storage, and granular access control.

Type
Full Stack Web App
Role
Solo Developer
Status
Completed
Stack
Next.js 15MongoDB MongooseCloudinary FirebaseJWTTailwind
01 — Problem

Why Does This
Need to Exist?

People store sensitive documents — IDs, certificates, contracts — in random places: Gmail, WhatsApp, phone storage. These have no real access control, no encryption at upload, and no way to revoke access. When a device is lost or an account is compromised, everything is exposed.

DocLocker is built for people who need a private, secure vault for their important documents — with proper authentication and granular control over who sees what.

📤
Insecure Storage
Most people store documents in chat apps or email — no encryption, no access control.
🔑
Single Factor Only
A compromised password = all documents exposed. No secondary verification layer.
👁️
No Visibility
No audit log of who accessed what, and no way to revoke access once shared.
💾
Storage Fragmentation
Documents scattered across devices, email drafts, and cloud drives with no central control.
02 — System Architecture

How It's
Architected

DocLocker uses a Next.js 15 frontend and API layer with MongoDB as the primary database and Cloudinary for binary file storage. Account verification uses a custom OTP system with a MongoDB TTL index — codes expire automatically after 5 minutes. JWT tokens with HTTP-only cookies secure all sessions.



Next.js Frontend
React 19 · Tailwind CSS · Heroicons
↓
Auth Layer
JWT · bcryptjs · HTTP-only Cookies
OTP Verification
Custom OTP · MongoDB TTL Index · 5 min expiry
↓
Next.js API Routes
Zod Validation · Mongoose ODM
↓
MongoDB
User data · Metadata · Permissions
Cloudinary
Binary files · Secure URLs · Transforms

Files are never stored in MongoDB. Only metadata and Cloudinary secure URLs are persisted. Cloudinary signed URLs with expiry are used for file delivery — direct access without a valid session returns nothing.

03 — Database Design

Data
Schema

DocLocker uses 7 MongoDB collections, each with a precise responsibility. The design handles nested folder hierarchies via a self-referencing Folder model, OTP-based verification with an automatic TTL index that expires codes after 5 minutes, and a RecycleBin that soft-deletes documents before permanent removal.

Collection Overview — 7 Models
User
Document
Folder (self-ref)
ShareLink
Otp TTL
RecycleBin
ActivityLog
User
_idObjectId
usernameString · required
emailStringunique
passwordHashString · required
verifiedBoolean · false
createdAt / updatedAtDate
Document
nameString · required
fileUrlString · required
sizeNumber
typepdf | image | docx…
folderId→ Folder (nullable)
userId→ User · required
statusactive | deleted
Folder (self-referencing)
nameString · required
userId→ User · required
parentFolderId→ Folder · null=root
statusactive | deleted
null parentId = root folder
Otp TTL 5 min
userId→ User · required
codeString · required
typeregister | login | reset
createdAtDate · default now
index expireAfterSeconds: 300
ShareLink
docId→ Document · required
userId→ User · required
urlString · required
expiresAtDate (optional)
oneTimeBoolean · false
createdAtDate
RecycleBin
docId→ Document · required
userId→ User · required
deletedAtDate · default now
soft-delete before permanent removal
ActivityLog
userId→ User · required
activityTypeupload | delete | login
| share | download
targetIdObjectId (doc or folder)
createdAtDate
Key Design Decisions
→ OTP TTL index — OtpSchema.index({ createdAt: 1 }, { expireAfterSeconds: 300 }) tells MongoDB to automatically delete OTP documents 5 minutes after creation. No cron job, no manual cleanup — the database does it natively.
→ Self-referencing Folder — parentFolderId: null marks a root folder. Any folder pointing to another folder's _id becomes a subfolder, enabling infinite nesting with a single model and no depth limit.
→ Soft delete with RecycleBin — Documents are not instantly destroyed. Setting status: "deleted" on the Document + creating a RecycleBin entry gives users a recovery window before permanent deletion.
→ ActivityLog for audit trail — Every upload, delete, share, login, and download is logged with the user and target ID. This gives the system a full security audit trail — essential for a document vault.
→ oneTime ShareLink — The oneTime: true flag allows generating burn-after-read share links. Once accessed, the link is invalidated — no re-use possible.
→ verified flag on User — Accounts start as verified: false. Login is only permitted after OTP verification flips this to true, blocking unverified accounts from accessing the vault.
04 — Features

What DocLocker
Does

🔐
OTP-Based Account Verification
Every new account must verify via OTP before accessing the vault. OTP codes are stored in MongoDB with a native TTL index — they auto-expire after 5 minutes with zero application-level cleanup needed.
☁️
Cloudinary Secure File Storage
Files are uploaded directly to Cloudinary. Signed, expiring URLs are generated per-request so no file is directly accessible without an active session.
🔗
Controlled Sharing with Expiry
Share a document via a tokenized link with optional email restriction, view count limit, and auto-expiry. Revoke access at any time by invalidating the ShareLink token.
📁
Document Management Dashboard
Upload, preview, rename, and delete documents from a clean dashboard. Documents show upload date, file type, size, and current privacy status at a glance.
✅
Zod Schema Validation
Every API input is validated with Zod before hitting the database. Invalid payloads return structured error messages — no raw database errors are ever exposed to the client.
05 — Screenshots

UI Walkthrough

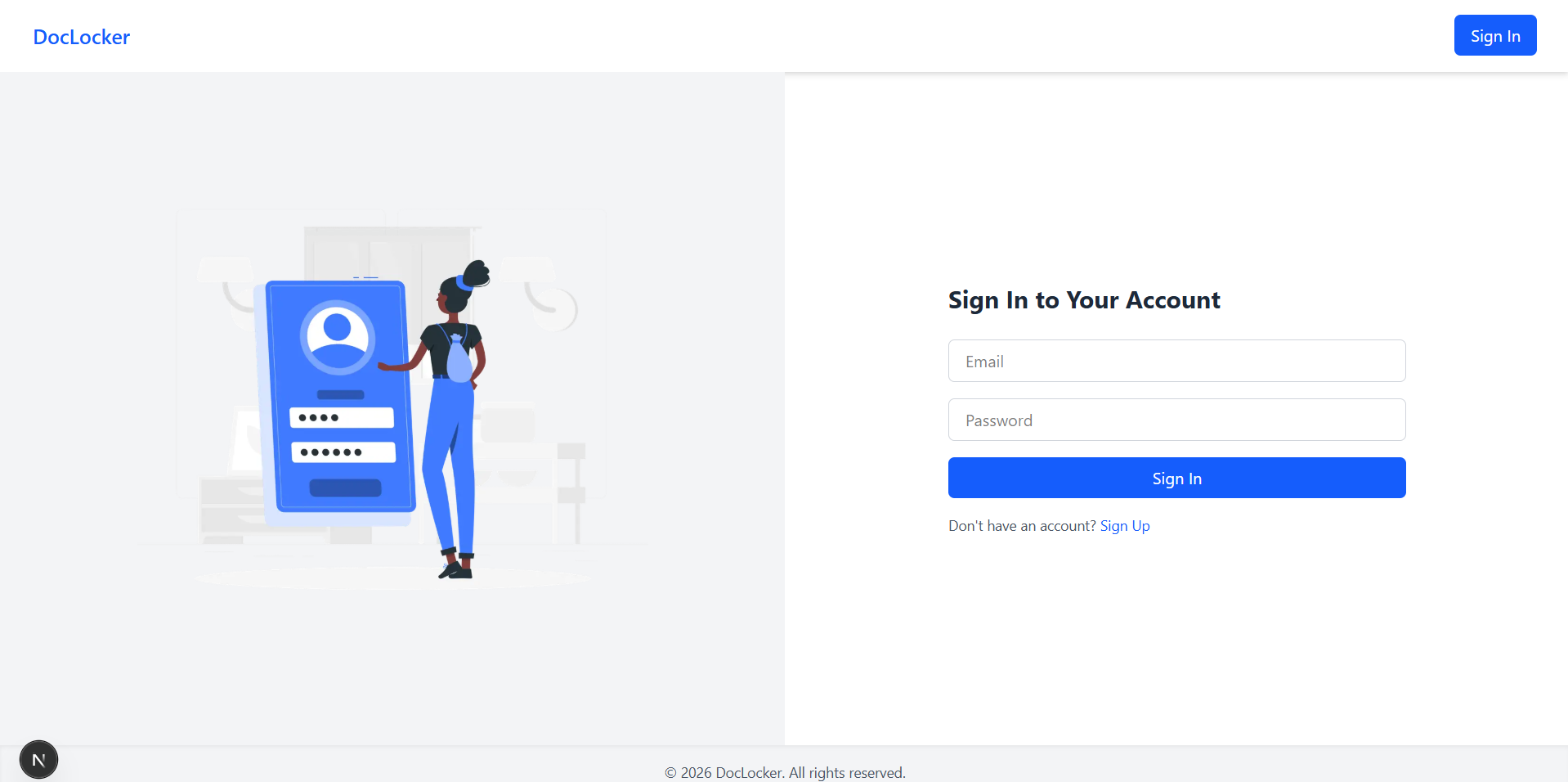

doclocker.app/login
HOD Dashboard
Login with MFA prompt after password

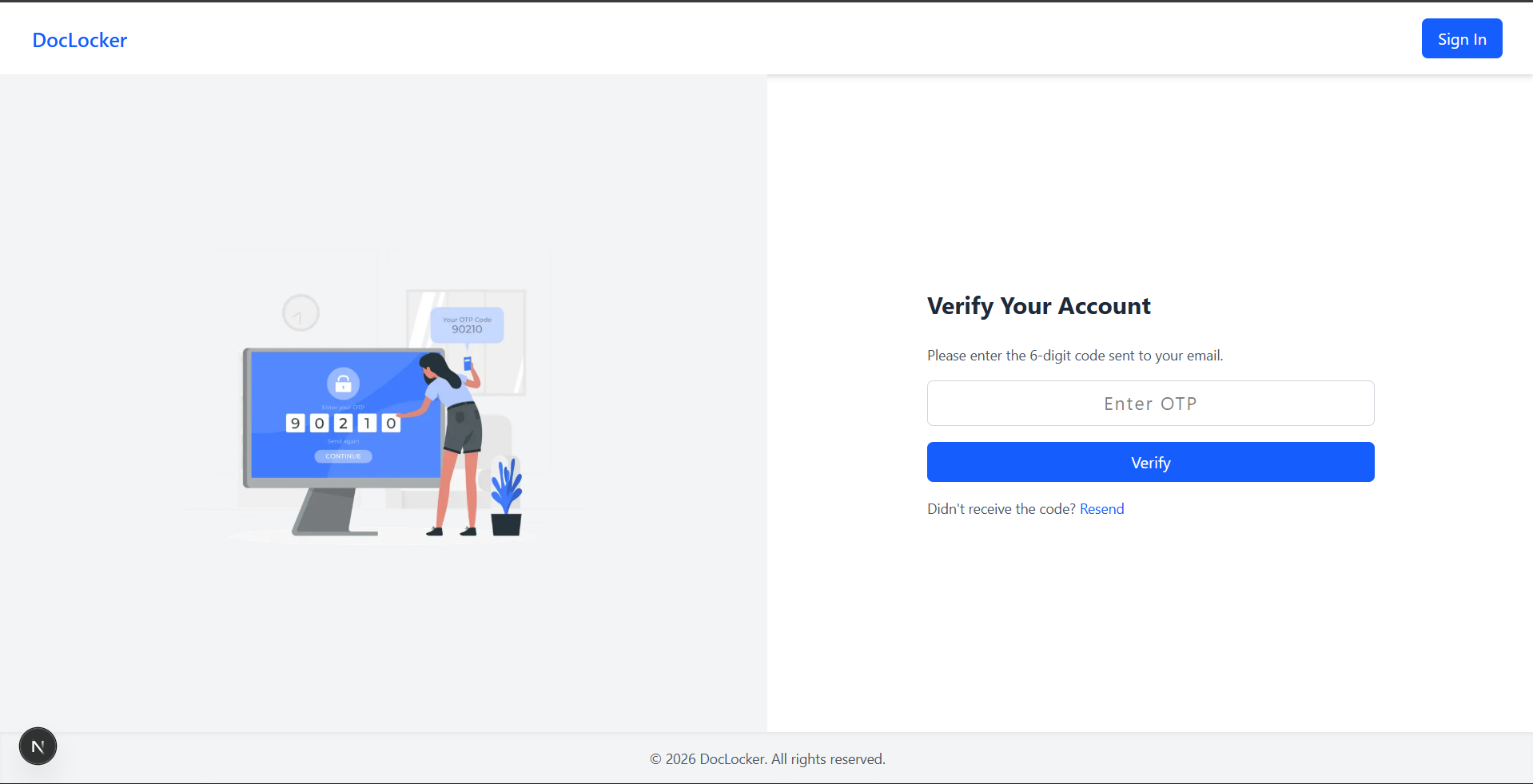

doclocker.app/verify-otp
HOD Dashboard
Verify OTP after vaild credential
doclocker.app/dashboard
HOD Dashboard
Document grid view with file cards

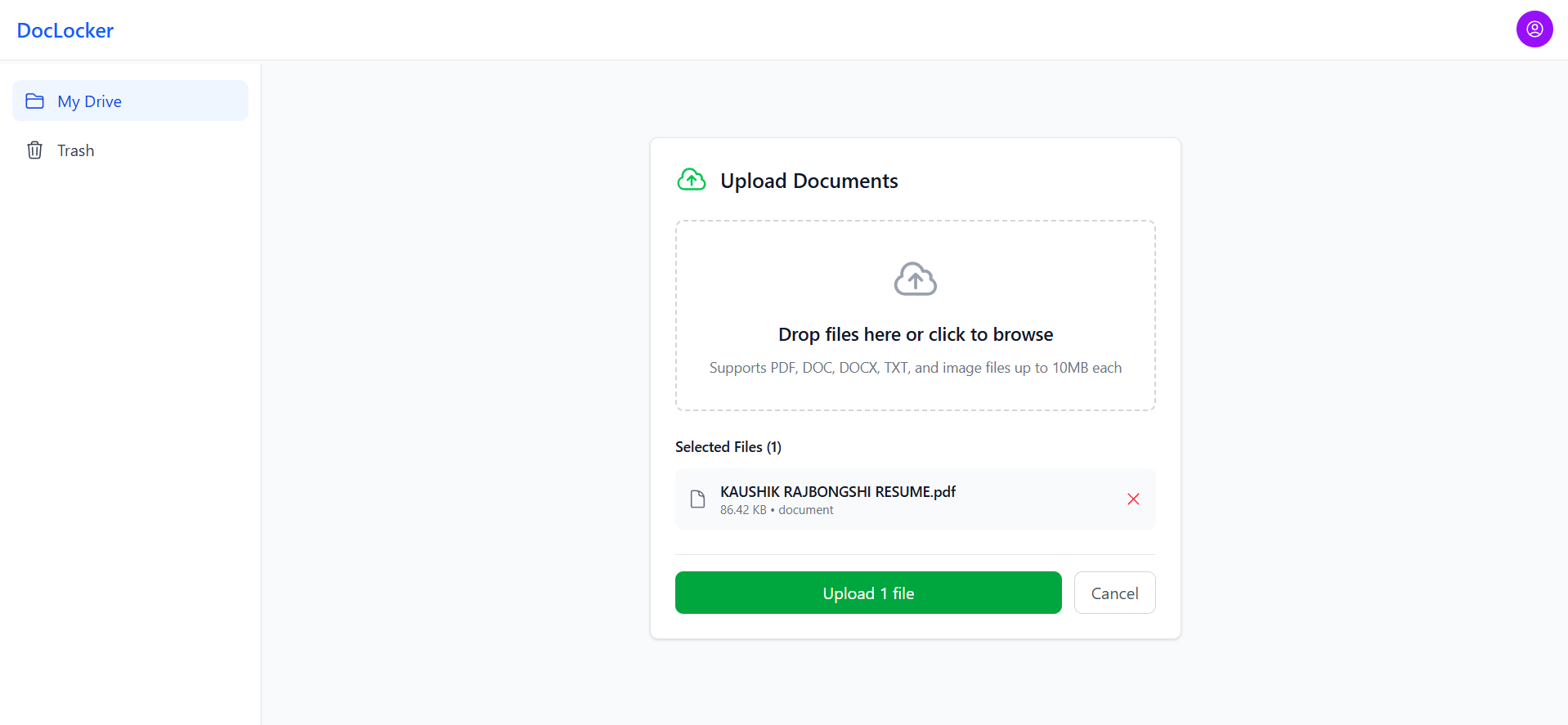

doclocker.app/uploaddoc
HOD Dashboard
Upload document

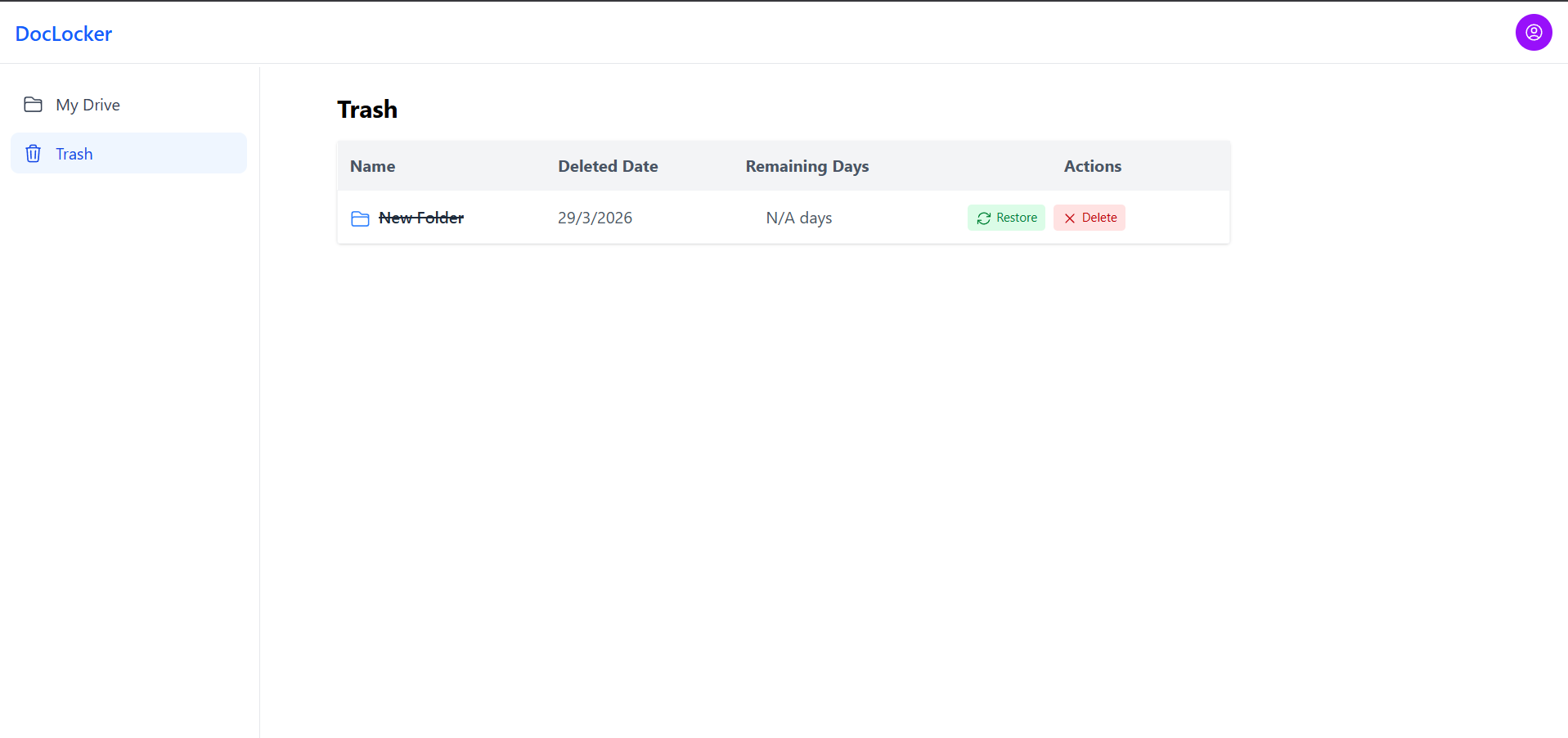

doclocker.app/recyclebin
HOD Dashboard
RecycleBin for Recovery
06 — Challenges

Hard Problems
I Solved

Secure File Delivery Without Exposing Cloudinary URLs
Cloudinary public URLs are permanent by default. I implemented signed URL generation server-side with a short expiry window (5 minutes) and tied to the user's session. File requests go through an API route that validates the session, then returns a fresh signed URL — so raw Cloudinary links are never stored client-side or exposed in responses.
OTP Verification Without a Third-Party Service
Instead of relying on Firebase or a paid SMS/email API for OTP, I built the entire flow in-house using MongoDB's native TTL index. The challenge was ensuring codes expire reliably and can't be reused. The solution: OtpSchema.index({ createdAt: 1 }, { expireAfterSeconds: 300 }) lets MongoDB's background thread delete expired OTPs automatically. The verified: false flag on User means even if someone skips OTP, they simply cannot access the vault.
ShareLink Token Security
Share links need to be unguessable, expirable, and revocable. I generated tokens using crypto.randomBytes(32).toString('hex'), stored the hash (not the raw token) in MongoDB, and added view-count enforcement and email restrictions at the API level. Expired or revoked links return 410 Gone, not 404, to distinguish intentional revocation from invalid paths.
07 — What I Learned

Key
Takeaways

☁️
Cloud Storage Patterns
Never trust the client with raw storage URLs. Always proxy through your own API with auth checks.
🔑
Multi-Factor Flows
Chaining two auth systems requires careful state management — a pre-auth token pattern keeps things safe without race conditions.
🍪
Cookie Security
HTTP-only, SameSite=Strict, Secure flags together make session cookies nearly immune to common web attacks.
🔗
Token Design
Storing hash of share tokens (not raw value) means a DB breach doesn't expose valid share links.
